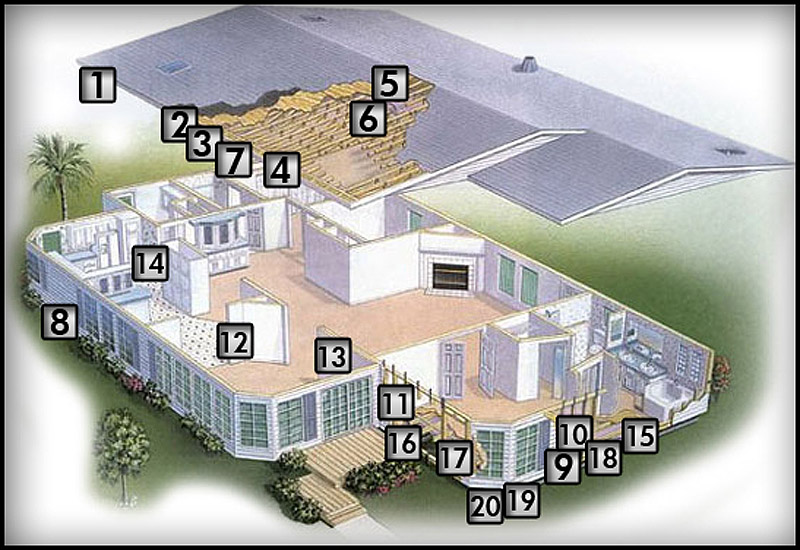

Manufactured Home Construction Process

How our manufactured homes are built.

1 – Fiberglass Shingle Roof
Each shingle attached with six fasteners, backed by 20-year limited warranty.

2 – Asphalt Laminated Reinforced Shingle Underlayment
In addition to a layer of 15-lb roofing felt.

3 – Oriented Strand Board Roof Sheathing
Engineered to resist racking and shape distortion under high wind.

4 – Truss Roof Rafter System
With double rafters within 3′ of front & rear. (Approved for hurricane zones I, II & III) Solid one-piece structural center beams.

5 – Blown Cellulose Ceiling Insulation
Fire retardant and formaldehyde-free.

6 – Insulated Flex-Duct System
Fiber reinforced mastic sealed airtight insulated flex-duct system with sealed interior risers insulated with fiberglass.

7 – Ventilated Roof Cavity
In addition to a whole house ventilation system.

8 – Vinyl Lap Siding
50-year limited warranty: won’t dent, rot, chip or corrode.

9 – 3/8″ Structural Sheathing Under Lap Siding
Adds strength and extra insulation to walls.

10 – Fiberglass Exterior Wall Insulation
For maximum energy efficiency.

10 – Fiberglass Exterior Wall Insulation
For maximum energy efficiency.

11 – 2″ x 6″ Exterior Walls
With 26-gauge uplift straps attached to the floor and rafters.

12 – 2″ x 4″ Interior Walls
Gypsum board covered with decorative wall vinyls

13 – Double Marriage Walls
Walls from each side of the home join together at the center line forming an double wall to provide superior structural stability.

14 – Decorator Gypsum Interior Walls
Or optional painted textured walls.

15 – Oriented Strand Board Floor Decking
Langboard OSB comes with a 10-year limited warranty against delamination.

16 – Fiberglass Blanket Floor Insulation
A one-piece blanket of insulation covers each section to provide the highest amount of energy efficiency.

17 – Transverse Floor Construction
Tongue-and-groove floor decking.

18 – Reinforced Polyvinyl Bottom Board
Helps eliminate moisture infiltration and air seepage.

19 – Solid Steel I-Beam
With a steel front header frame member and full outriggers on 14′ wide sections.

20 – Tie-Down Connectors
Vertical, horizontal and frame tie-down connectors
